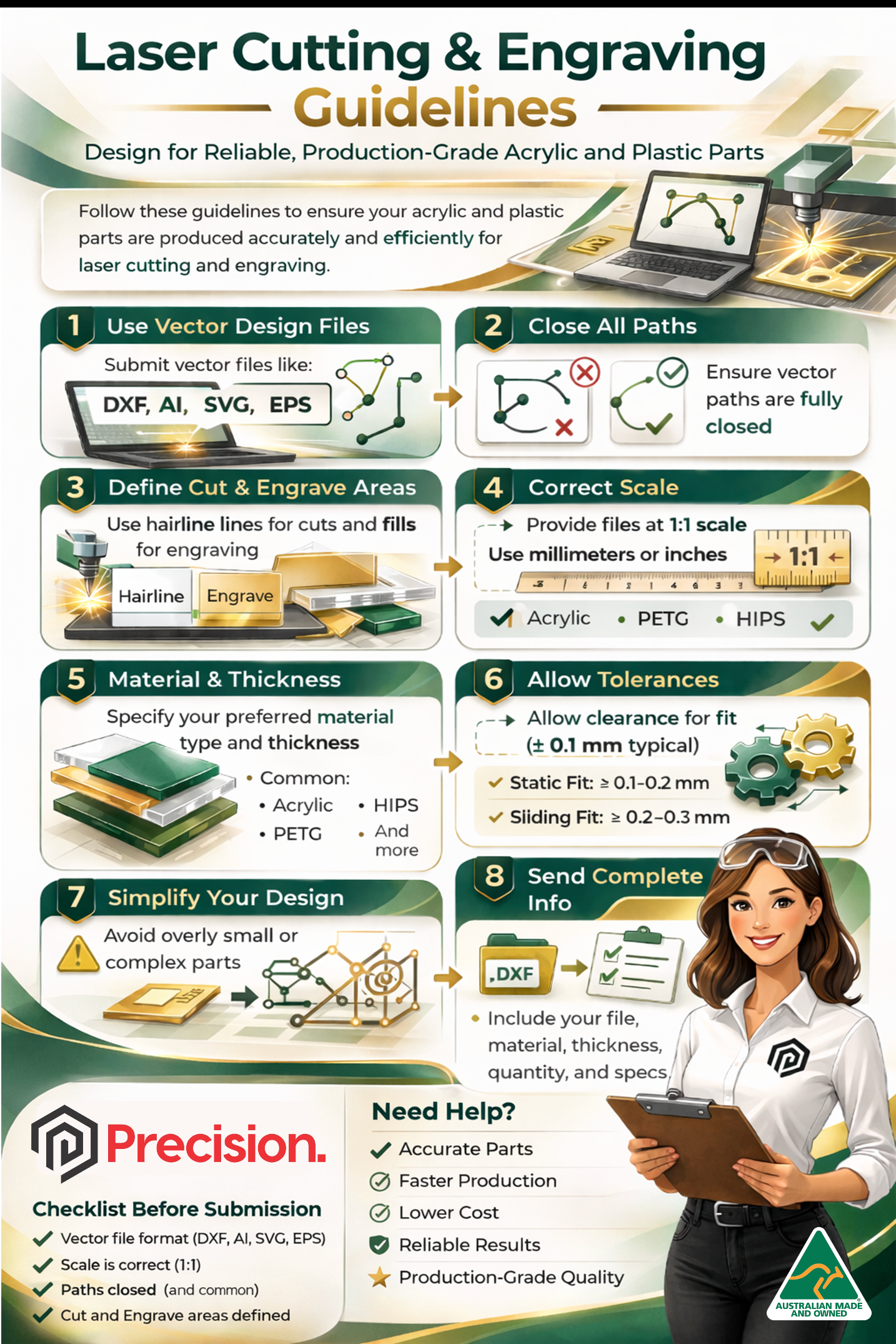

Laser Cutting Guidelines

Design for Reliable, Production-Grade Acrylic and Plastic Parts

Laser cutting and engraving allow highly accurate production of acrylic and plastic components for prototypes, functional parts, signage, and production assemblies. The quality of the final part depends directly on the quality and preparation of the design files and project information supplied.

Following these guidelines ensures parts are produced accurately, efficiently, and with minimal redesign or delay.

Laser cutting systems operate directly from CAD vector paths, meaning your design file becomes the exact instruction for cutting or engraving.

If you are unsure, Precision Plastics Australia can review your files and recommend adjustments prior to production.

CALL US FOR SUPPORT

1. Accepted Formats

These vector formats are widely supported and ensure accurate cutting and engraving.

  • DXF (Preferred)
  • AI (Adobe Illustrator)
  • SVG
  • EPS
  • DWG
  • STEP or STP (converted to 2D cut profiles)

2. Vector Path Preparation

Laser cutters follow vector paths exactly. Improper geometry can cause errors or incorrect cutting. Please ensure:

  • All cut lines are vector paths
  • All paths are fully closed (no open shapes)
  • No duplicate or overlapping lines
  • No hidden geometry or stray points
  • No filled shapes for cut paths
  • All engraving areas clearly defined

3. Units, Scale, and Drawing Setup

Your file must be prepared at real-world scale. Use: Millimetres (preferred), or inches (be consistent across entire file). Please esure:

  • File scale is 1:1
  • Geometry matches intended physical size
  • Parts fit within maximum sheet size

Incorrect scaling is one of the most common causes of production errors.

4. Cutting / Engraving Definitions

Laser software uses vector paths and fill data to distinguish between cutting and engraving operations.

Cut lines:

  • Vector lines only
  • Hairline or zero thickness
  • Fully continuous paths

Engraving areas:

  • Filled vector shapes
  • Or raster engraving areas

5. Material Selection Guidance

Material selection affects appearance, strength, and engraving quality. Common materials include:

  • Cast acrylic
  • Extruded acrylic
  • PETG
  • HIPS
  • ABS
  • 3M adhesives
  • Engineering plastics

6. Tolerances and Fit

Laser cutting provides excellent dimensional accuracy. Typical tolerances to ensure proper assembly and functional performance is ± 0.1 mm (industry standard)

For mating parts or assemblies, allow clearance where required. This ensures proper assembly and functional performance.

  • Static fit: ≥ 0.1–0.2 mm
  • Sliding fit: ≥ 0.2–0.3 mm

7. Design Best Practices

Designing parts with laser cutting in mind improves quality and reduces cost. Recommended practices:

  • Simplify geometry where possible
  • Avoid extremely small features
  • Maintain consistent material thickness
  • Avoid unnecessarily complex shapes
  • Combine parts efficiently to reduce waste

Efficient design improves manufacturability, reduces waste, and lowers production cost.

8. Complete Project Information

When requesting a quote for production, please include:

  • Design file(s)
  • Material type (if known)
  • Material thickness
  • Quantity required
  • Engraving or cutting requirements
  • Preferred finish
  • Timeline requirements

9. Production Size and Scaling

Laser cutting is suitable for:

  • One-off prototypes
  • Small batch production
  • Medium production volumes

Laser systems can produce repeatable parts efficiently without tooling, making them ideal for custom and production applications.
